SS Storage Tanks

The backbone of your process — GMP-compliant stainless steel storage for pharmaceutical, food and chemical applications.

SS Storage Tanks

About the SS Storage Tanks

Stainless Steel Storage Tanks serve as the backbone of material management in hygienic and industrial process environments. Designed for the safe, contamination-free containment of raw materials, intermediates, buffer solutions or finished products, these vessels maintain product integrity over extended periods and across multiple batch cycles.

Unlike active process equipment, storage tanks are passive systems — but their quality directly impacts downstream product purity and process reliability. Our tanks are fabricated from SS 304, 316 or 316L with crevice-free welding, internal mirror polishing and GMP-compliant nozzle arrangements. Available with heating/cooling jackets, agitators, insulation and a full complement of process connections to suit any process requirement.

Key Applications

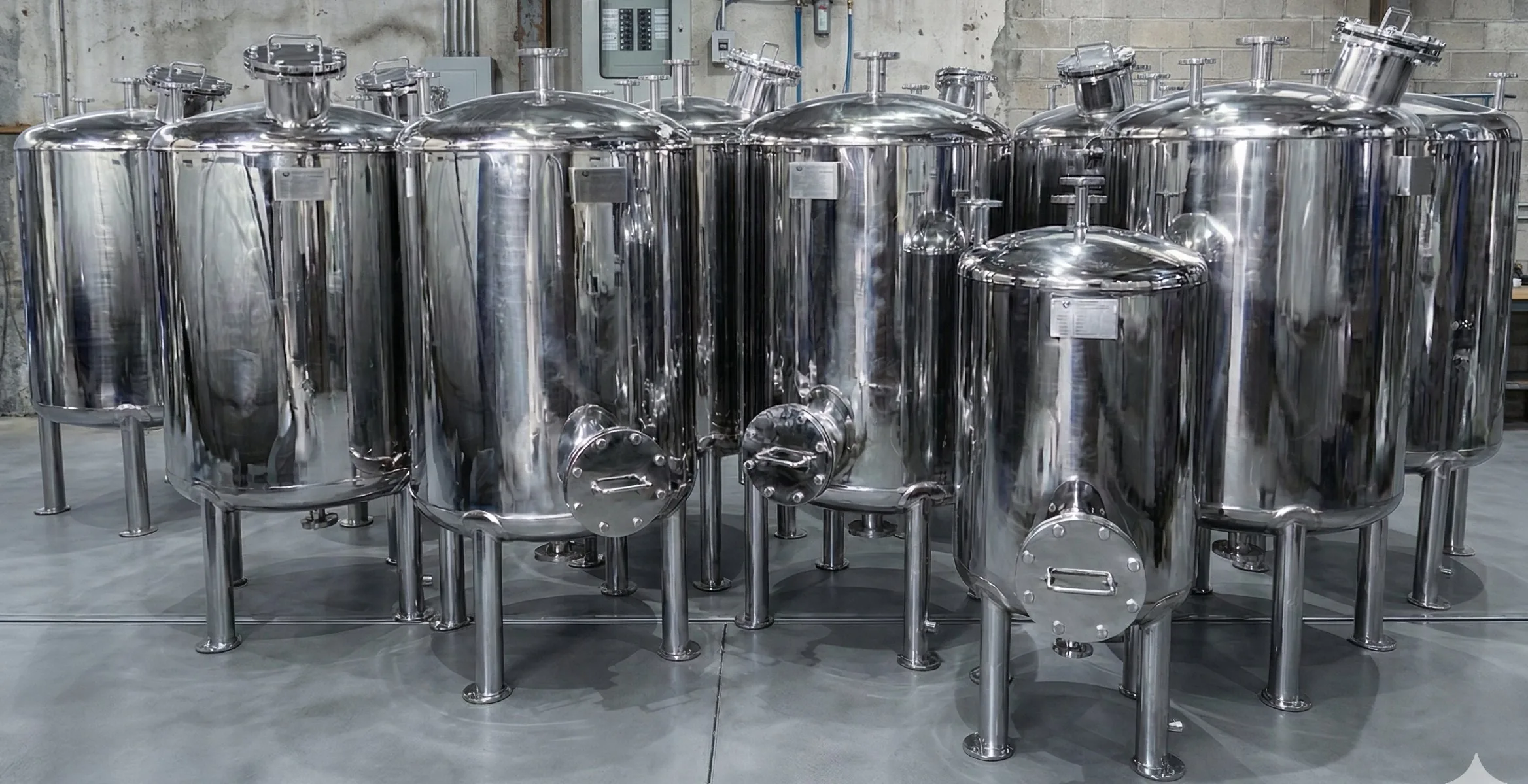

SS Storage Tanks detail

Core Advantages

Mirror-Polished Internals
Crevice-free welds and internal mirror polish prevent bacterial growth, product retention and contamination.
Corrosion Resistance
SS 304 / 316 / 316L grades provide excellent resistance to oxidation and chemical attack across a wide range of products.
Zero Product Contamination
Non-reactive surfaces ensure stored materials do not leach metals or alter their chemical profile.
Structural Durability
Designed to withstand atmospheric pressure, vacuum and internal pressure cycles without deformation.
Fully Customisable
Jackets, agitators, insulation, dip tubes, spray balls, manways — configured to exact process requirements.
GMP & ISO Compliant
Fabricated to GMP, ASME and ISO standards with full material traceability and MTC documentation.

Technical Specifications

Capacity Range100 litres to 100,000 litres and above
Material of ConstructionSS 304 / SS 316 / SS 316L
Surface FinishInternal Ra ≤ 0.8μm; external satin / matt / mirror
ConnectionsAs per process P&ID — DIN / ANSI flanges or tri-clamp
OptionsHeating/cooling jacket, insulation, agitator, spray ball, level gauge
ComplianceASME, DIN, GMP, ISO
