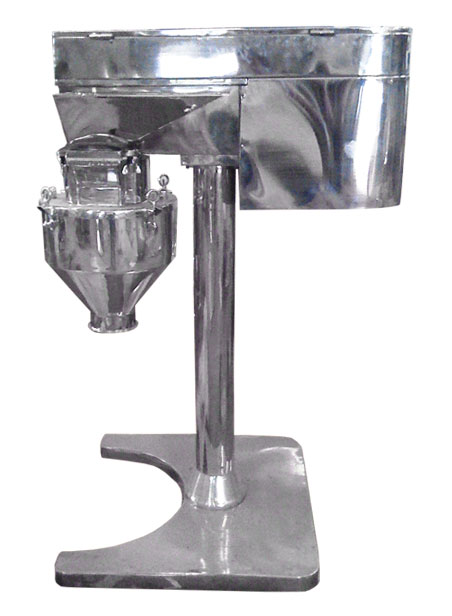

Multi Mill

Vats & Vessels Multi Mills are serving in chemicals, pharmaceuticals, dyestuff, paints, ceramics, food industries, cosmetics, pesticides, fertilizers, plastics, spices, bakeries, resins, insecticides etc.

Multi Mill is widely used for Granulation, Pulverization and Mixing. Swinging Hammer Blades and Scrapers arrangement gives Shredding & Chopping Effect.

Construction -
The unit consists of Motor drive & Rotor assembly. The rotor assembly is equipped with swinging hammer blades & scrapers. The rotor has 4 different speeds - 750 / 1500 / 2000 / 3000. The speed variation is achieved by aluminum cone pulley & belt arrangement on motor & rotor. Interchangeable Perforated Screen with Charging & Discharging Hopper is provided as per requirement. All internal & external SS parts are mirror polished.

Special Features of Vats & Vessels Multi Mill

• cGMP Models, Units with FLP are available
• The base is mounted on 4 Nos. castor wheels
• Constructed in SS 304 / SS 316 / MS. Complete unit with S.S. cover and all surfaces polished to mirror dull finish. MS parts dull painted to smooth finish
• Wide range of SS perforated or wire knit screens available
• Higher output with process uniformity
• Different designs & Shapes of mixing beaters to suit particular mixing requirement for wide variety of materials
